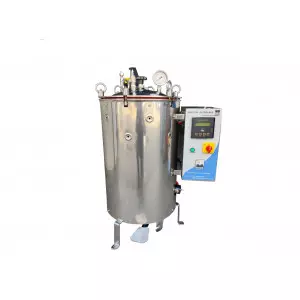

Vertical Autoclave

AvailabilityIn Stock
CategoryVertical Autoclave
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Vertical Autoclave Details

Patel Scientific Instruments Pvt. Ltd. offers robust and efficient Vertical Autoclaves, designed for the sterilization of laboratory glassware, media, instruments, and biohazard waste. Engineered with high-grade stainless steel and equipped with safety features such as pressure gauges, safety valves, and automatic cut-offs, our autoclaves ensure thorough and reliable steam sterilization. The vertical design optimizes space, making it ideal for laboratories with limited bench area. It supports high-temperature sterilization cycles with precision control, making it suitable for microbiology, pharmaceutical, and research applications.

Key Features:

  • Construction: Double-walled / triple-walled (optional) stainless steel construction (SS-304/SS-316)

  • Capacity Range: Available from 22 liters to 150 liters

  • Heating System: Energy-efficient immersion heaters for uniform steam generation

  • Pressure Range: Operates at 15 psi to 20 psi (adjustable)

  • Temperature Control: Thermostatic/Automatic digital temperature controller with timer

  • Lid Locking Mechanism: Safety radial locking system with pressure release valve

  • Safety Features: Pressure gauge, safety valve, and automatic pressure cut-off system

  • Optional Add-ons: Digital PID controller, printer attachment, water level indicator, low water cut-off device

  • Power Supply: 220V AC / 50Hz (customization available)

Applications:

  • Microbiology and pathology labs

  • Pharmaceutical quality control

  • Medical and surgical instrument sterilization

  • Food and beverage testing

  • Research and educational institutes



Model No.

Size (Dia. x Height)

Capacity

(Liters)

Rating

Watts

Inch

Cm

PSI-VAC40L

12 Ø x 20 Ht

30 Ø x 50 Ht

40

2000

PSI-VAC52L

14 Ø x 22 Ht

35 Ø x 55 Ht

52

3000

PSI-VAC80L

16 Ø x 24 Ht

40 Ø x 60 Ht

80

4000

PSI-VAC98L

18 Ø x 24 Ht

45 Ø x 60 Ht

98

4000

PSI-VAC120L

18 Ø x 30 Ht

45 Ø x 75 Ht

120

5000

PSI-VAC152L

22 Ø x 30 Ht

55 Ø x 75 Ht

152

6000

PSI-VAC200L

22 Ø x 36 Ht

55 Ø x 90 Ht

200

7000



Why Choose Our Vertical Autoclave?

  • Superior build quality for long-lasting use
  • Precise temperature and pressure control
  • Multiple safety features for operator protection
  • Customizable as per user requirements
  • Supported by installation, training, and maintenance services



Documentations Provided

  • IQ OQ PQ
  • Calibration Certificate
  • User Manual of Instrument
