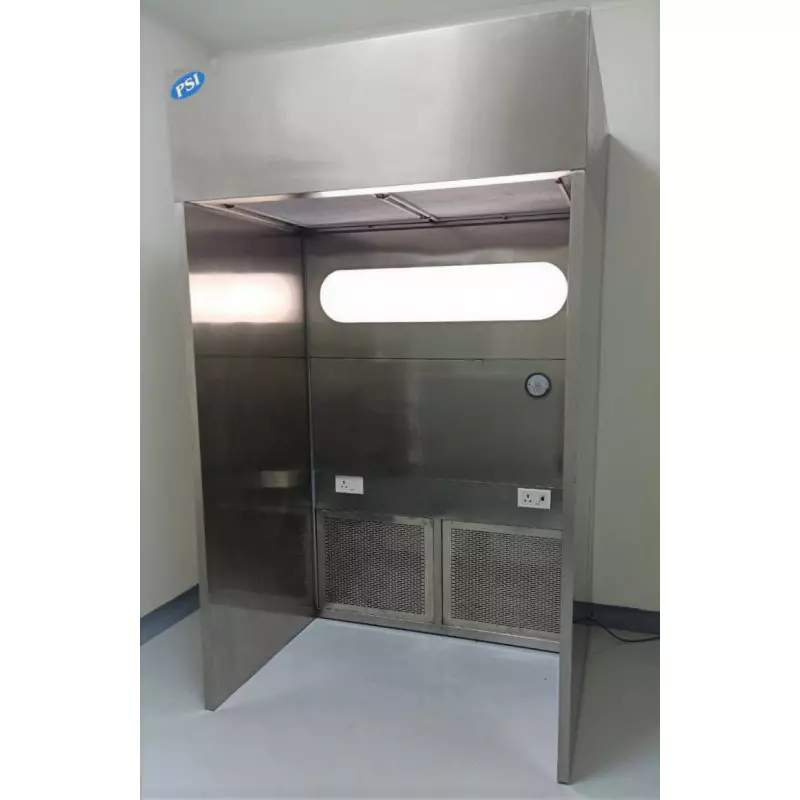

Reverse Laminar Air Flow

AvailabilityIn Stock
CategoryLaminar Air Flow
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Reverse Laminar Air Flow Details

Designed to handle hazardous powders and chemical compounds, this system provides operator protection through reverse airflow and HEPA filtration. It minimizes cross-contamination and is essential for pharmaceutical formulation and powder sampling areas.

This self-contained workstation features HEPA-filtered air intake and exhaust systems that ensure a sterile and particle-free environment, minimizing cross-contamination and exposure during critical powder handling operations.

Main design features:

The work area is separated from the external environment by the following devices:

  • The reverse laminar flow booth is formed by a stainless steel; AISI 304 scotch brite finished self-supporting structure, provided with rounded corners for easy cleaning.
  • A negative pressure inside the booth prevents the escape of fine powder from the work area towards the external environment.
  • A perforated diffuser panel made of stainless steel shields the upper filtration area.
  • 5/15 amps electrical points on the panel
  • CFL lighting through diffuser provided on the panel
  • Internal height can be adjusted as per requirements. Standard height is 6’/1830 mm.

Application: Product sampling, large scale dispensing, weighing

 Specifications:

Filters: Aluminum framed High efficiency Particulate air (HEPA), with a minimum efficiency of 99.99% at 0.3 micron.

Exhaust Filter: Aluminum framed High efficiency Particulate air (HEPA) with a minimum efficiency of 99.99% at 0.3 micron.

Pre filter: Washable type pleated pre-filter with 90% efficiency. EU4 rating.

Construction: Models available in 18 gauge (1.2 mm) stainless steel 304.

Air flow: 90 FPM (0.45 m/s) 10 FPM (0.05 m/s) average velocity measured 6 in. (152.4 mm) from the diffuser screen. Uniformity 20% of average or better

Noise level: 65 5 DB measured from filter face.

Motor / Blower assembly: Direct drive, continuous duty ¼ HP with sealed bearings. Motor assembly is mounted on FRP casing to reduce noise & vibration and is dynamically balanced.

Plenum: In stainless steel 304 for distribution of air. Designed in negative pressure to prevent escape and / or bypass of HEPA filter by contaminated air and / or dust.

Finish: Matt

Model

No.

Working Inner dimension

Size in MM

PSI-RLAF900

900 x 600 x 1800

PSI-RLAF1200

1200 x 600 x 1800

Documentations Provided

  • IQ OQ PQ
  • Calibration Certificate
  • User Manual of Instrument
