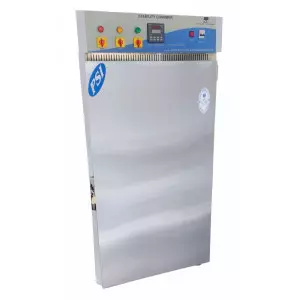

Stability Chamber
Stability Chamber Details
Essential for shelf-life and stability testing of pharmaceutical and food products, this chamber offers precise control over temperature and humidity. It features an internal SS chamber, digital control panel, and uniform airflow for reliable long-term testing.
With advanced microprocessor-based controllers and uniform air circulation, the Stability Chamber maintains stable environmental parameters for both accelerated and long-term stability studies.
TECHNICAL SPECIFICATIONS | |
Temperature Range | 10°C to 60°C Accuracy / Uniformity : ±0.2°C / ±1.0°C |
Humidity Range | 40% to 95% Rh. Accuracy / Uniformity ±2%RH / ±3%RH |
Temperature / Humidity Display | Digital LED 3 ½ Digit, Resolution :0.1°C / 1% RH |
Control | Microprocessor-based PID Control with auto-tune CE Marked |
Temperature Sensor | PT -100 |
RH Sensor | Direct Electronics Capacitance type |
Heating | U-shaped Nichrome wire Air heater in SS Sheathing |
Cooling | CFC Free Emerson makes a compressor utilizing R134A ecofriendly refrigerant |
Steam Injection | Boiler with reservoir made of thick stainless steel, with heater, water inlet control, low water level safeguard, and insulation |
Air circulation | Bharat Vidhut makes a Flange motor with an impeller / Blower |
Construction | Double Walled, gap between walls filled with PUF Insulation |
Shelves | Heavy S.S. 304 Rod Adjustable Trays |
GMP model | Inner Chamber Stainless steel mirror polished 0.8 mm Outer chamber and exterior of Mett finish 1.0 mm stainless steel. |
Double Door | Inner full-viewing door and outer door insulated with lock and key arrangement. Control panel with electrical switch gear and refrigeration system (CFC Free) mounted on top for easy service accessibility. Unit mounted on castor wheels |
Safety Features | · Float switch to cut off the mains supply in case of · Safety Thermostat in the evaporation tray to cut off the heater supply in case of low water level. · Inbuilt safety control system to cut off the supply in case of overshoot and undershoot of Temperature, giving audio-visual alarm. · Additional safety thermostat to cut off the supply in case of overshoot of temperature. · 2 min. compressors ‘ON’ delay timer to safeguard the compressor |
Model No. | Inner dimension (W x D x H) MM | Capacity (Liters) | No. of Trays |
PSI-SC100L | 450 x 450 x 500 | 100 | 2 |
PSI-SC175L | 500 x 500 x 700 | 175 | 2 |
PSI-SC200L | 600 x 600 x 600 | 220 | 3 |
PSI-SC285L | 600 x 600 x 750 | 285 | 3 |
PSI-SC340L | 600 x 600 x 900 | 340 | 3 |
PSI-SC450L | 600 x 600 x 1200 | 450 | 4 |
PSI-SC600L | 700 x 700 x 1200 | 600 | 4 |
PSI-SC800L | 700 x 750 x 1500 | 800 | 4 |
PSI-SC1000L | 800 x 800 x 1500 | 1000 | 5 |
OPTIONAL - 1
- MICROPROCESSOR AUTO TUNE PID CONTROLLER WITH DATA LOGIN SYSTEM WITH SOFTWARE.
- MICROPROCESSOR TOUCH SCREEN HMI COLOUR DISPLAY WITH PLC FOR DATA LOGGING
DATA RECORD:
- 21 CFR Part 11 Compliance Secured audit trail
- Multilevel Passwords
- Print Interval Programmable Between 1 to 240 minutes
- Multi-Chamber data acquisition on a Single Software.
- Data Generated on PDF Report
- Provision to do system setting, Humidity Control, Temp. Control, System reset, Graph View, User View, off offline Print.
- Auto logout, account blocking, and reactivating facility.
- Log data, event, and audit trail data recording
- Tabular and graphical report, audit trail report
STANDBY HUMIDITY & COOLING SYSTEM:
- Completely ready-to-use systems.
- Automatic switch-over upon failure of primary systems to achieve conditions.
- Switch-over also upon detection of HP/LP & Internal fault.
- Scheduled & manual change-overs.
- Recording of all changes in the software.
OPTIONAL - 2
DOOR ACCESS SECURITY SYSTEM
- A door access security system can be installed to authorize or monitor the opening of the chamber. It can be interfaced with the pc with software.
CONNECTIVITY
- Provision for Mobile Alerts System, Door Access System, Print Facility, Data Transfer Facility with Ethernet & LAN Connectivity.
Documentations Provided
- IQ OQ PQ
- Calibration Certificate
- User Manual of Instrument
