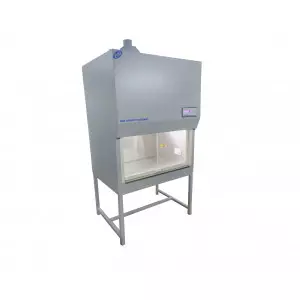

Bio Safety Cabinet

AvailabilityIn Stock
CategorySafety Cabinets
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

Bio Safety Cabinet Details

The Bio Safety Cabinet ensures a safe and sterile working environment for handling sensitive biological agents and samples. Equipped with HEPA filters, UV sterilization, and air velocity control, it protects the user, product, and the environment. Its ergonomic design enhances user comfort, and its sound-proof operation makes it suitable for extended usage in microbiology, biotechnology, and pharmaceutical labs.

Technical specification:

Product: -

Class II Type A2 Bio Safety Cabinet

Air balancing: -

Protection: -

70% recirculation. 30% exhaust

personnel & environmental protection

MOC: -

Exhaust Filter: -

Stainless Steel – Matt Finish

HEPA Filter having EU 13 rating with suitable size

Digital Display

Microprocessor LCD display for Blower, U.V. light, Hour Meter & FLT Timers

Door: -

Weight Lifting Sliding Door for easy handling

Hepa Filter: -

99.99% down to 0.3 Microns

EU 4 rating with suitable size

Pre Filter: -

10 Micron Washable

Efficiency: -

90% down to 10 Microns

Inflow Velocity:-

Minimum 100% from the front opening

Illumination Of Light: -

Optimum

Noise Level: -

Less than 70 db 'A'

Vibration Level: -

Minimum.

Magnehelic Differential

Pressure Gauge: -

To measure differential pressure across the supply HEPA filter.

Motor Blower Assembly: -

Statically & dynamically balanced with suitable rating and size.
(Induction motor with centrifugal blower) A Mounting unique

Spring suspension system to take care of vibration and noise.

White Lights: -

Lights through white acrylic cover to get maximum light intensity

3 Pins Switch & Socket: -

15 AMPS - 1 set in each unit

Other Switches: -

On/Off switches for motor blower & CFL lights

Model

No.

Working Inner dimension

Size in Mm

PSI-BSC600

600 x 600 x 600

PSI-BSC900

900 x 600 x 600

PSI-BSC1200

1200 x 600 x 600

Key Features:

  • Types Available: Class I, Class II (Type A2/B2), and Class III configurations

  • Construction: Full-body stainless steel (SS-304/316) interior with powder-coated or SS exterior

  • Filtration: Equipped with HEPA filters (99.99% efficiency at 0.3 microns) and pre-filters

  • Airflow System: Vertical laminar airflow with negative pressure containment

  • Work Zone: Stainless steel workbench with easy-to-clean design

  • Illumination: UV germicidal lamp and fluorescent lighting for safe visibility

  • Control Panel: User-friendly digital control system with airflow display and alarms

  • Front Sash: Sliding/tilting tempered glass sash with counterbalance mechanism

  • Safety Features: Low airflow alarm, UV interlock, gas tap (optional), and auto shutoff

  • Noise Level: Low-noise operation under < 65 dB

  • Power Supply: 230V AC / 50Hz (customizable options available)
